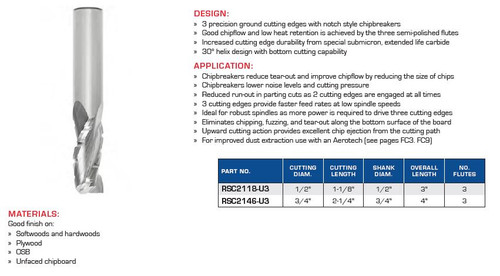

SEE PHOTO
DESIGN:
3 precision ground cutting edges with notch style chipbreakers
Good chipflow and low heat retention is achieved by the three semi-polished flutes
Increased cutting edge durability from special submicron extended life carbide
30° helix design with bottom cutting capability
APPLICATION:
Chipbreakers reduce tear-out and improve chipflow by reducing the size of chips
Chipbreakers lower noise levels and cutting pressure
Reduced run-out in parting cuts as 2 cutting edges are engaged at all times
3 cutting edges provide faster feed rates at low spindle speeds
Ideal for robust spindles as more power is required to drive three cutting edges
Eliminates chipping, fuzzing, and tear-out along the bottom surface of the board
Upward cutting action provides excellent chip ejection from the cutting path
For improved dust extraction use with an Aerotech
MATERIALS:
Good finish on:
Softwoods and hardwoods
Plywood
OSB
Unfaced chipboard
