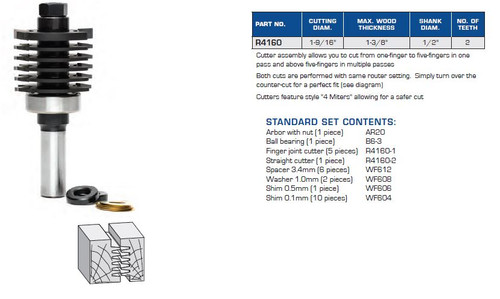

SEE PHOTO
Cutter assembly allows you to cut from one-finger to five-fingers in one pass and above five-fingers in multiple passes.
Both cuts are performed with same router setting. Simply turn over the counter-cut for a perfect fit (see diagram)
Cutters feature style "4 miters" allowing for a safer cut.
STANDARD SET INCLUDES:
Arbor with nut (1 piece) AR20
Ball bearing (1 piece) B6-3
Finger joint cutter (5 pieces) R4160-1
Straight cutter (1 piece) R4160-2
Spacer 3.4mm (6 pieces) WF612
Washer 1.0mm (2 pieces) WF608
Shim 0.5mm (1 piece) WF606
Shim 0.1mm (10 pieces) WF604
