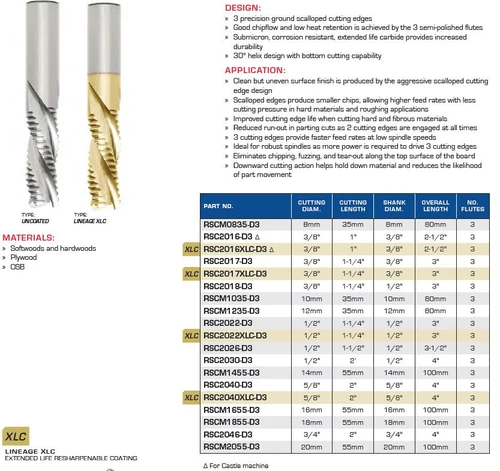

DESIGN:
3 precision ground scalloped cutting edges
Good chipflow and low heat retention is achieved by the 3 semi-polished flutes
Submicron, corrosion resistant, extended life carbide provides increased durability
30° helix design with bottom cutting capability
APPLICATION:
Clean but uneven surface finish is produced by the aggressive scalloped cutting edge design
Scalloped edges produce smaller chips, allowing higher feed rates with less cutting pressure in hard materials and roughing applications
Improved cutting edge life when cutting hard and fibrous materials
Reduced run-out in parting cuts as 2 cutting edges are engaged at all times
3 cutting edges provide faster feed rates at low spindle speeds
Ideal for robust spindles as more power is required to drive 3 cutting edges
Eliminates chipping, fuzzing and tear-out along the top surface of the board
Downward cutting action helps hold down material and reduces the likelihood of part movement
MATERIALS:
Softwoods and hardwoods
Plywood
OSB
LINEAGE XLC:
Extended life resharpenable coating
