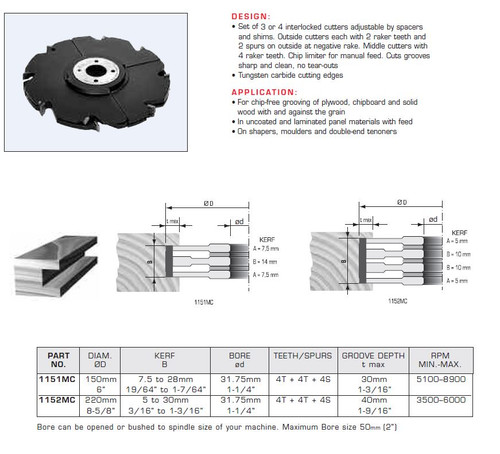

DESIGN:
High tensile steel body
set of 3 or 4 interlocked cutters adjustable by spacers and shims
outside cutters each with 2 raker teeth and 2 spurs on outside at negative rake
Middle cutters with 4 raker teeth
chip limiter for manual feed
cuts grooves sharp and clean, no tear outs
Tungsten carbide cutting edges
APPLICATION:
For chip-free grooving of plywood, chipboard and solid wood with and against the grain
In uncoated and laminated panel materials with feed
MACHINES:
On shapers, moulders and double-end tenoners
Bore can be opened or bushed to spindle size of your machine
Maximum bore size 50mm (2")
