SEE PHOTO

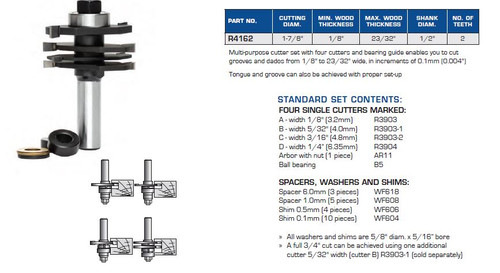

Multi-purpose cutter set with four cutters and bearing guide enables you to cut grooves and dados from 1/8" to 23/32" wide, in increments of 0.1mm (0.004")
Tongue and groove can also be achieved with proper set-up
STANDARD SET CONTAINS:
FOUR SINGLE CUTTERS MARKED:
A - width 1/8"(3.2mm) R3903
B - width 5/32"(4.0mm) R3903-1
C - width 3/16"(4.8mm) R3903-2
D - width 1/4"(6.35mm) R3904
Arbor with nut (1 piece) AR11
Ball Bearing B5
SPACERS, WASHERS AND SHIMS:
Spacer 6.0mm (3 pieces) WF618
Spacer 1.0mm (5 pieces) WF608
Shim 0.5mm (4 pieces) WF606
Shim 0.1mm (10 pieces) WF604
All washer and shims are 5/8" diameter x 5/16" bore
A full 3/4" cut can be achieved using one additional cutter 5/32" width (cutter B) R3903-1 (sold separately)
