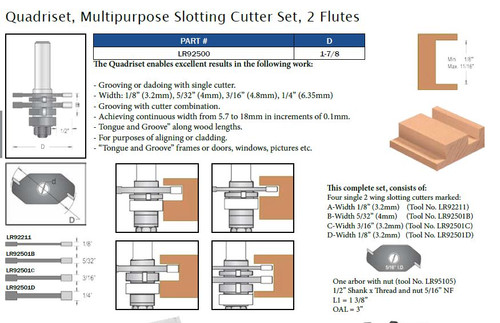

Quadriset Multipurpose Slotting Cutter Set, 2 Flutes
The Quadriset enables excellent results in the following work:
- Grooving or dadoing with single cutter.
- Width: 1/8" (3.2mm), 5/32" (4mm), 3/16" (4.8mm), 1/4" (6.35mm)
- Grooving with cutter combination.
- Acheiving continuous width from 5.7 to 18mm in increments of 0.1mm.
-"Tongue and Groove" frames or doors, windows, pictures, etc.
This complete set consists of:
four single 2 wing slotting cutters marked:
A-width 1/8" (3.2mm) (Tool # LR92211)
B-width 5/32" (4mm) (Tool # LR92501B)
C-width 3/16" (3.2mm) (Tool # LR92501C)
D-width 1/8" (3.2mm) (Tool # LR92501D)
One arbor with nut (tool # LR95105)
1/2" Shank x Thread and nut 5/16" NF
L1 = 1-3/8"
OAL = 3"
One ball bearing (tool # LR95008)
O.D. 7/8" (22mm) x I.D. 5/16" (8mm) x 9/32"
Spacers, washers and shims:
Spacers 6.0mm, 3 pcs, (Tool # LR95309)
Washers 1.0mm, 5 pcs, (Tool # LR95306)
Shims 0.5mm, 4 pcs, (Tool # LR95304)
Shims 0.1mm, 10 pcs, (Tool # LR95302)
